6CH CCWDM MUX/DEMUX, Compact CWDM Modules

More Views

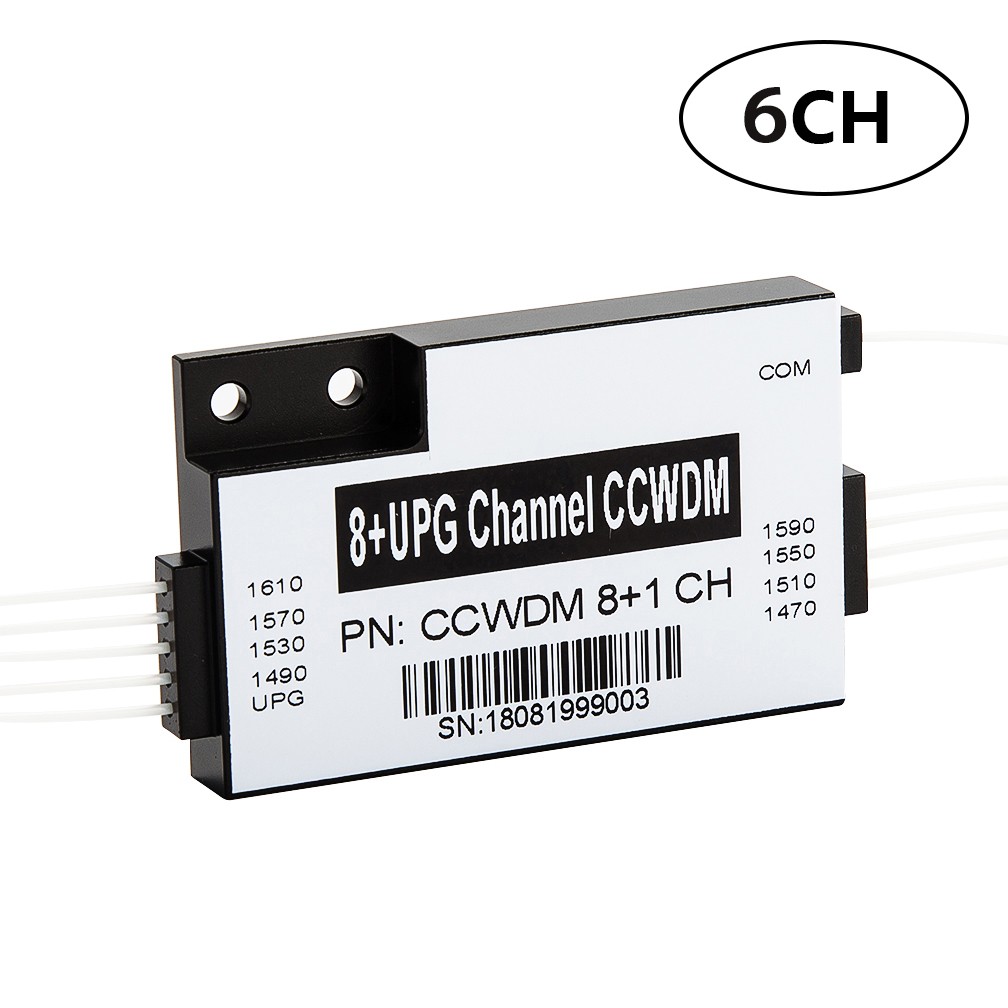

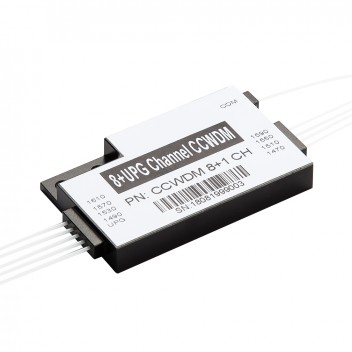

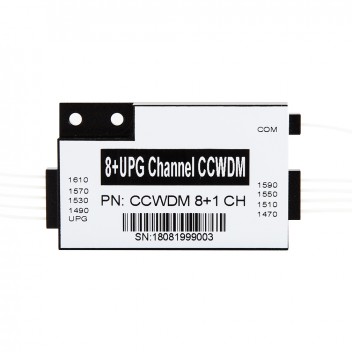

6CH CCWDM MUX/DEMUX, Compact CWDM Modules

SKU: CCWDM06

Availability: In stock

$91.00
Volume Price: Inquire
●Compact Size (Customized)
●Unidirectional & Bidirectional WDM
●ITU Frequency Grid
●Ultra Stable & Highly Reliable
●Wave Length: 1270nm ~ 1610nm

* Required Fields

$91.00
Product Description Shipping & Payment Customer Reviews
CCWDM06

Details

The 10Gtek 6CH CCWDM (Compact CWDM) MUX/DEMUX (Multiplexer/Demultiplexer) is a 6-channel CWDM device with super compact package designed for cost-effective multi-wavelength CWDM network applications. It is based on the Thin Film Filter (TFF) technology and operates at four 20nm channel spacing ITU Grid CWDM wavelengths. Gigalight provides a series of customized 6CH CCWDM MUX/DEMUX devices packaged in metal box to meet different requirements on port configuration (1310nm/upgrade ports available), fiber type, fiber length, input connector, and output connector.

10Gtek provides high quality CCWDM with flat channel bandwidth, flexible channel configuration, low insertion loss and high isolation. It is designed to upgrade capacity easily as the system grows. All 10Gtek products are epoxy-free in the optical path.
Features:

● Low Insertion Loss

● Compact size

● Ultra Stable and Highly Reliable

● Extended Operating Temperature Available

Applications:

● Optical Add/Drop Multiplexing

● Telecom networks

● Metro networks

● Broadband Networks

Performance Specifications:
Parameters 4CH

4+Upgrade

8CH 8+UPG1 8+UPG2
Operating Wavelength (nm) 1260 ~ 1620 1260 ~ 1620 1260 ~ 1620 1260 ~ 1620 1260 ~ 1620
Channel Wavelength (nm) 1270, 1290, ..., 1590, 1610 or 1271, 1291, ..., 1591, 1611
Upgrade Port Wavelength Range (nm) NA TBD NA 1260~1360 1260~1457
Channel Spacing (nm) 20 20 20 20 20
Channel Passband (nm) CWL+/-6.5nm CWL+/-6.5nm CWL+/-6.5nm CWL+/-6.5nm CWL+/-6.5nm
Insertion Loss (dB) ≤0.8 ≤0.8 ≤1.4 ≤1.4 ≤1.7
Channel Ripple (dB) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3
Isolation Adjacent (dB) >30 >30 >30 >30 >30
Isolation Non-adjacent (dB) >40 >40 >40 >40 >40
Upgrade Isolation (dB) NA >15 NA >15 >15
Polarization Mode Dispersion (PS) ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2
Polarization Dependent Loss (dB) ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2
Directivity (dB) >45 >45 >45 >45 >45
Return Loss (dB) >45 >45 >45 >45 >45
Maximum Power handling (mW) 500 500 500 500 500
Operating Temperature (°C) -5 ~ +70 -5 ~ +70 -5 ~ +70 -5 ~ +70 -5 ~ +70
Storage Temperature (°C) -40 ~ +85 -40 ~ +85 -40 ~ +85 -40 ~ +85 -40 ~ +85
Fiber Type G657A1 G657A1 G657A1 G657A1 G657A1
Connector TBD TBD TBD TBD TBD

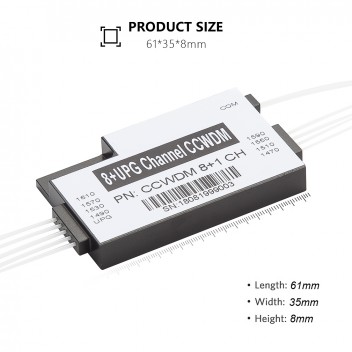

Package Dimension (mm) L44 x W25 x H6 or L55 x W35 x H8, ABS Box Min. Size: 100mm x 80mm x 10mm
*Specifications mentioned above are for device without connector.



Order Information:



Part Number Channel No.

Wave Length

Pigtail Type Fiber Length Connector
CCWDM04 4 Channel 1270nm, 1290nm,.......1590nm, 1610nm 250um
900um
0.5m
1m
1.5m
Others
FC/PC
FC/APC
SC/PC
SC/APC
LC/PC
LC/APC
Others
CCWDM06 6 Channel
CCWDM08 8 Channel
CCWDM10 10 Channel
CCWDM12 12 Channel
CCWDM14 14 Channel
CCWDM16 16 Channel
CCWDM18 18 Channel

CCWDM

MUX/ DEMUX
  1. Cisco CWDM OADM Series
  2. CCWDM
Compact Coarse Wavelength Division Multiplexer (CCWDM) is expanding the bandwidth of Metro/Access communications networks. 10Gtek's CCWDM is based on thin film filter technology and metal bonding micro optic packaging. It operates at 20nm channel spacing ITU Grid CWDM wavelengths
from 1270nm to 1610nm.
